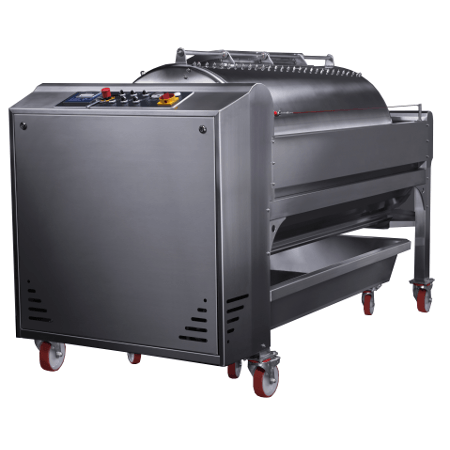

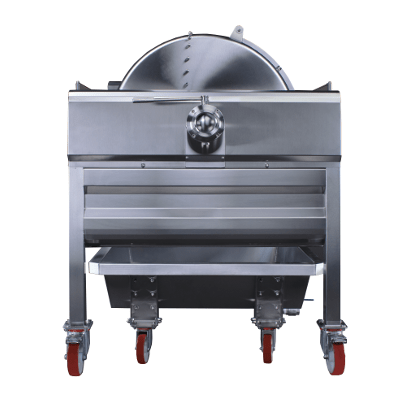

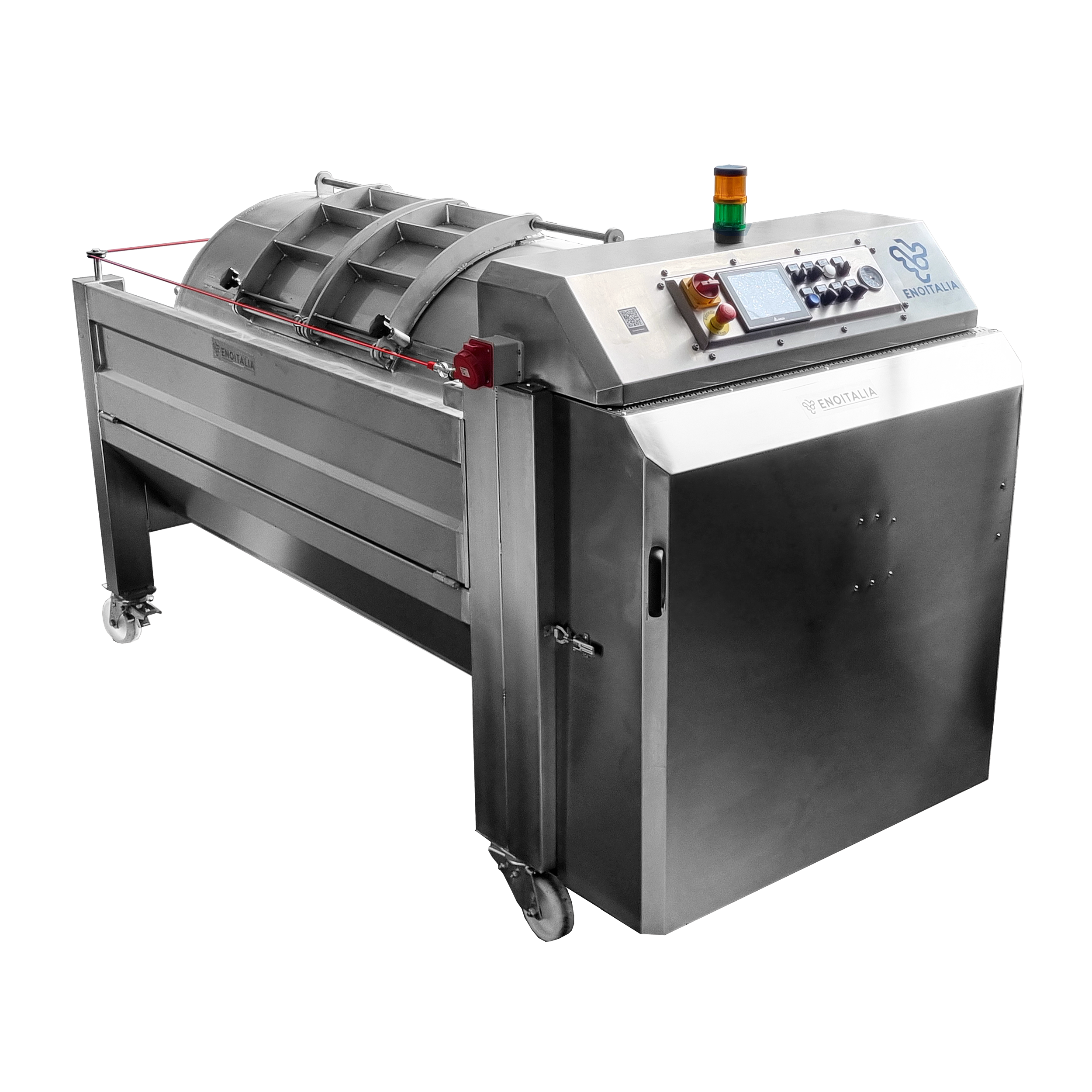

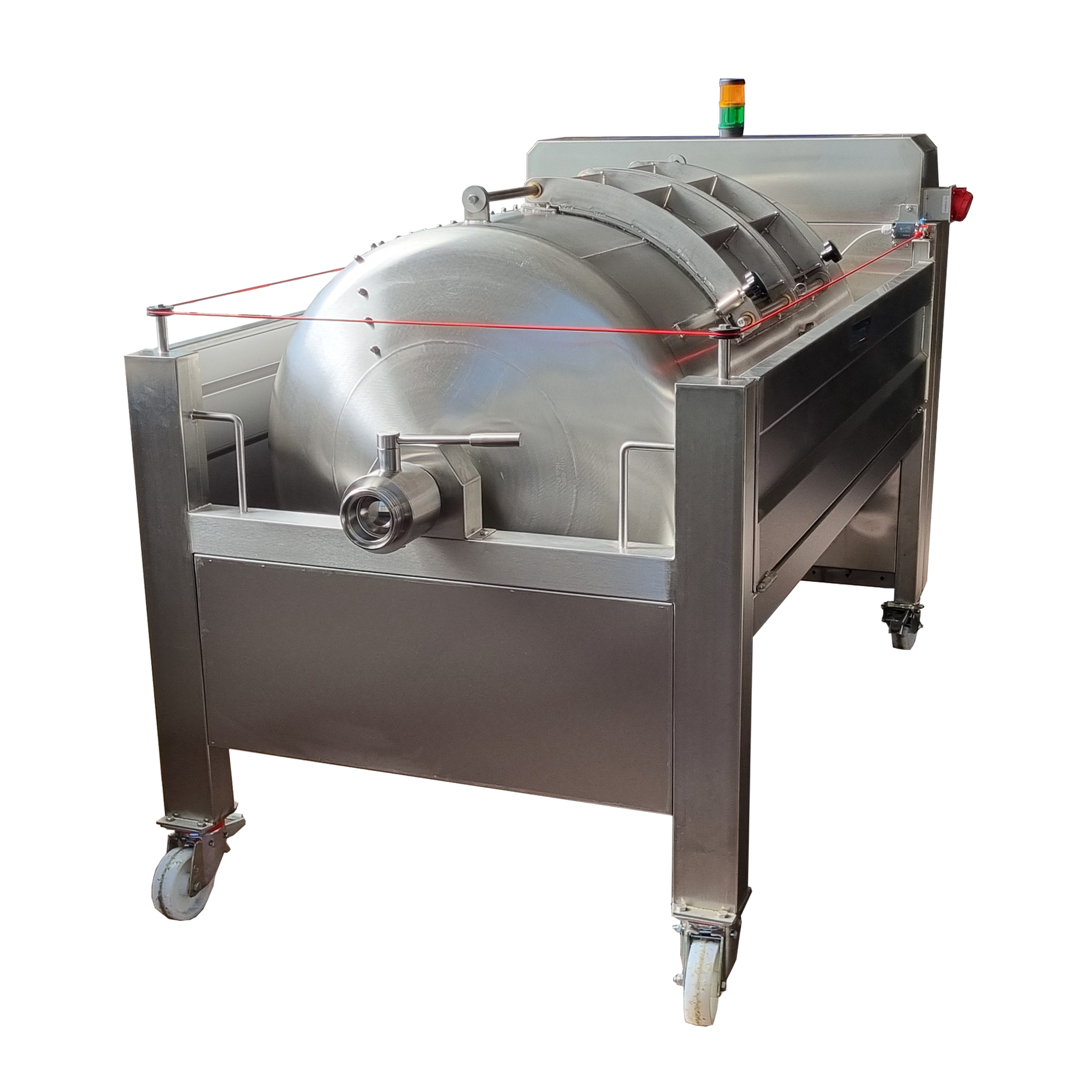

The pneumatic press lateral membrane is the ideal solution for superior quality products when pressing both freshly harvested grapes and fermented grape marc. Made entirely of stainless steel, with a double central door for easy loading and unloading. The technology used allows management of every stage of the pressing process. Exclusive software allows the machine to be managed either automatically, with 12 pre-set and 12 customisable programmes, or completely manually. The presses are supplied as standard with a perforated cylinder, equipped with drainage channels, and an axial loading valve.
Standard features:

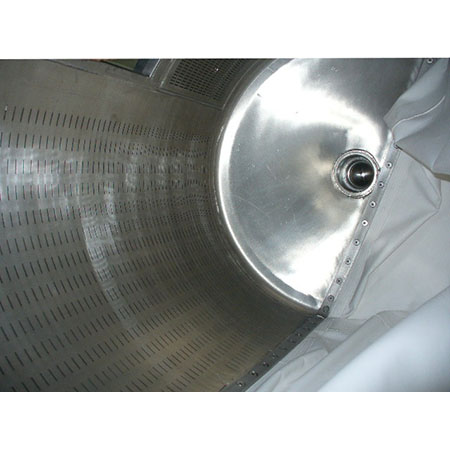

- Closed cylinder with drain canal / open perforated cylinder

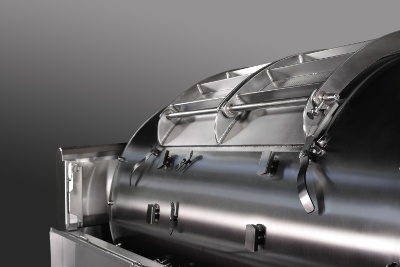

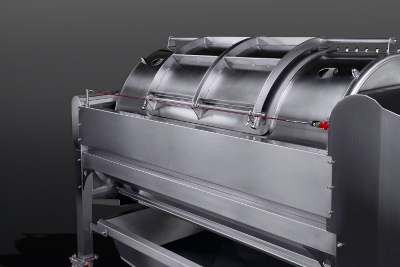

- Sliding and folding closing door

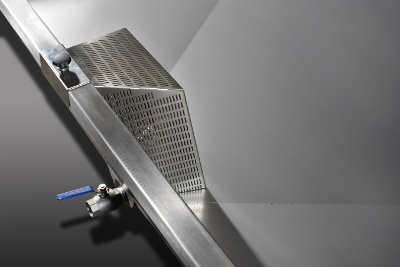

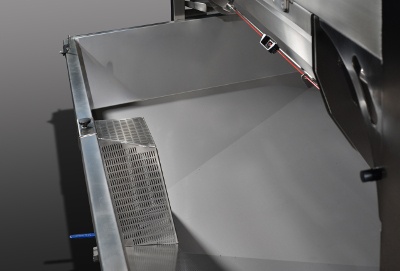

- Conical bottom collection tank with stainless steel drain valve and stainless steel filter. Optional level probe with external pump connection

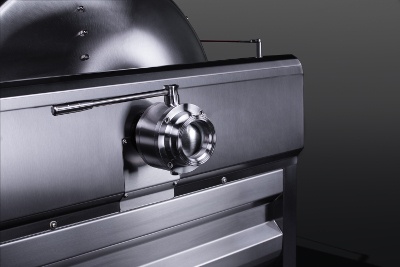

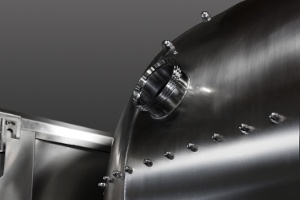

- Axial loading ball valve

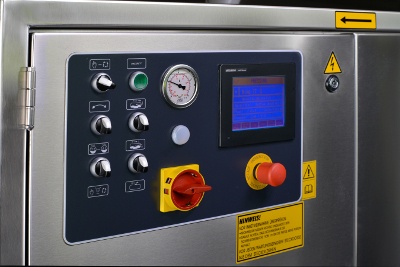

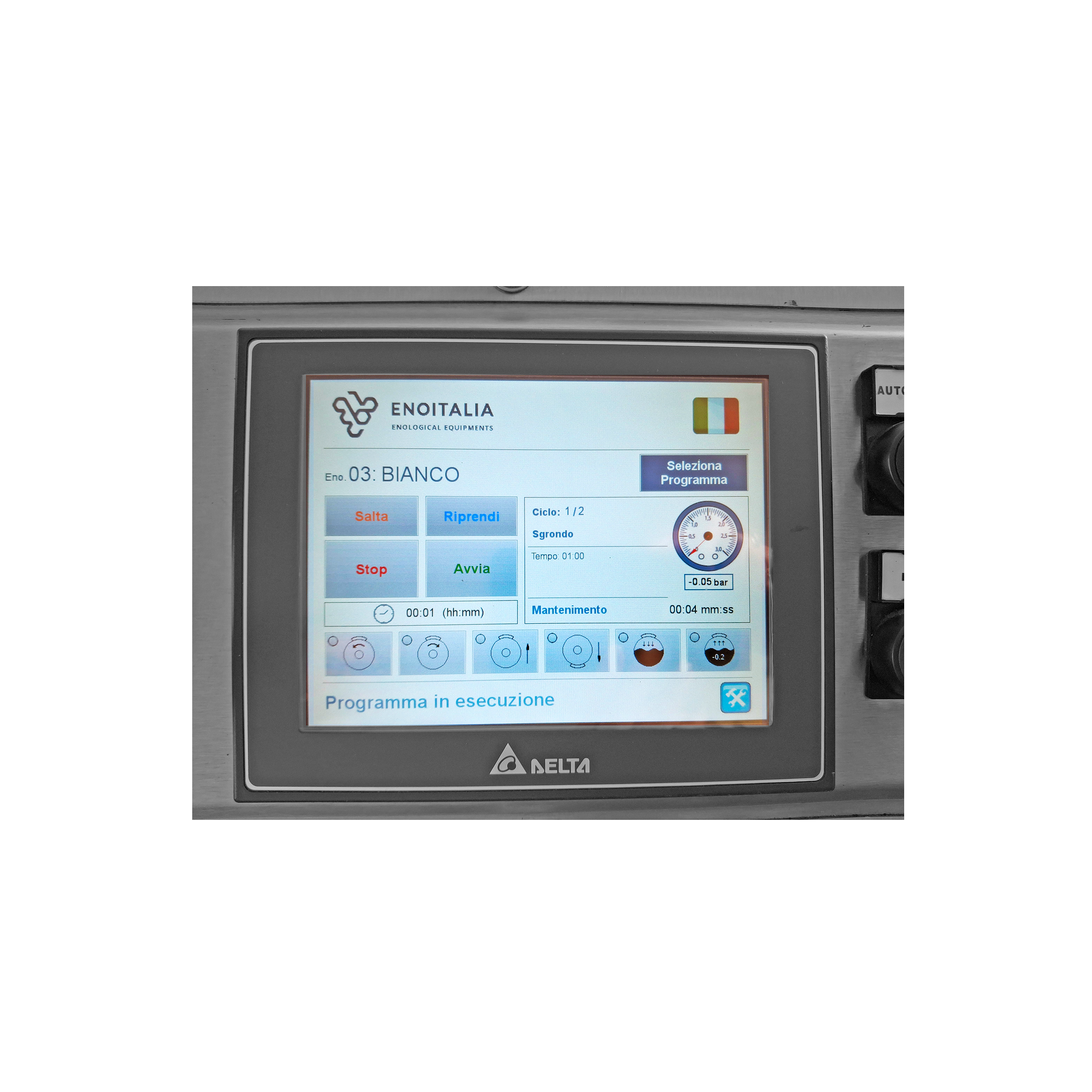

- Touch screen control panel with programming PLC
- Electrical control panel with manual controls
- Integrated Berker vane compressor
- Blower for vacuum and inflation Max. 0.2 bar
- Quick exhaust valve for high pressure

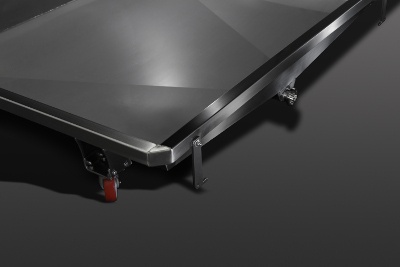

- Castors for movement equipped with locking brake
- Stainless steel side guards

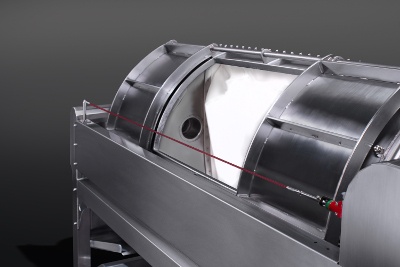

- Safety stop rope
- Electrical system with safety stop

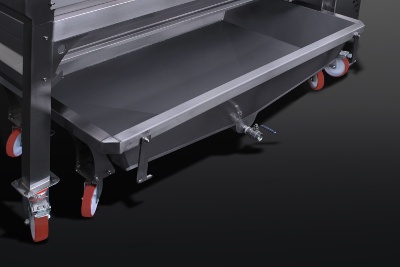

- Wheeled collection tank with filtration net
- Level probes with control panel for external pump (optional)
- Extensions for installing bins under the press discharge (optional)
- Overhead hopper for bin discharge through central door
- Three-phase 400v-5pole, three-phase 220V-5pole power supply
Models:
- GAMMA 5 – single central door
- GAMMA 8 – double door
- GAMMA 11 – double door
- GAMMA 15 – double door
- GAMMA 21 – double door
| Model | Power (Kw) | Loading valve | Cylinder capacity | Fermented grape capacity | Destemmed grape capacity | Whole grape capacity | Dimension | Weight |
| GAMMA 5 | 3,1 | 80 DIN | 500 lt | 1900 kg | 1400 kg | 400 kg | 1040x2130x1360 mm | 260 kg |
| GAMMA 8 | 3,5 | 80 DIN | 800 lt | 3040 kg | 2240 kg | 640 kg | 1040x2410x1460 mm | 300 kg |
| GAMMA 11 | 3,7 | 80 DIN | 1100 lt | 4180 kg | 3080 kg | 880 kg | 1270x2520x1590 mm | 430 kg |
| GAMMA 15 | 4 | 80 DIN | 1500 lt | 5700 kg | 4200 kg | 1200 kg | 1270x3020x1590 mm | 590 kg |
| GAMMA 21 | 5.6 | 100 DIN | 2100 lt | 7980 kg | 5880 kg | 1680 kg | 1600x3180x1860 mm | 790 kg |
