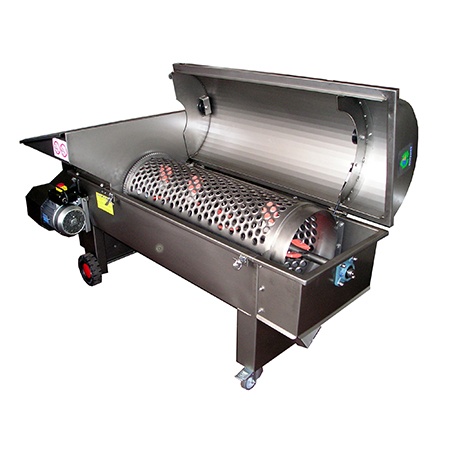

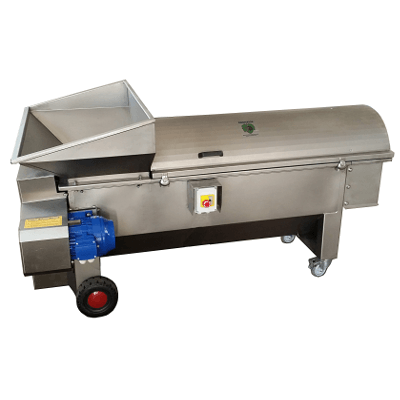

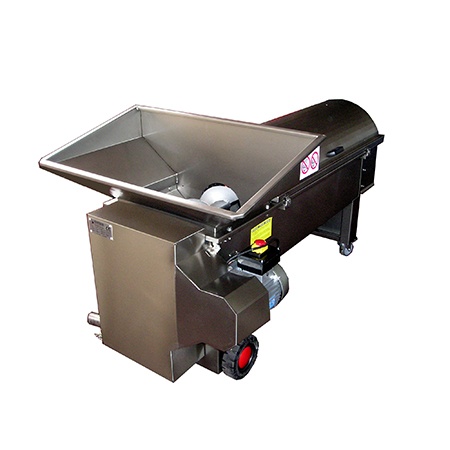

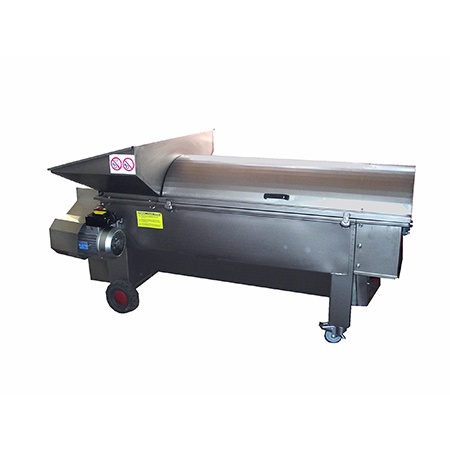

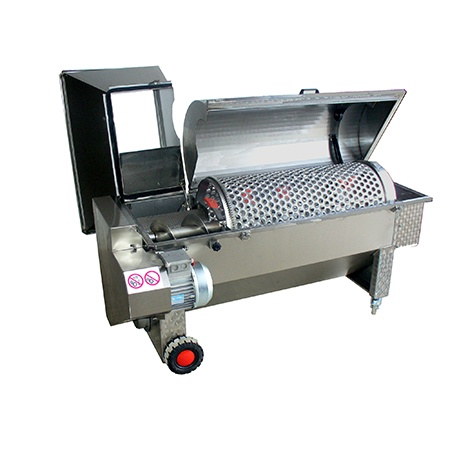

Centrifuge destemmer made with a circular destemming basket diameter 300/400/500mm. The rotation of the basket and of the destemming shaft occur in the same direction to avoid lacerations of the stalks. Destemming shaft comes with rubber coated paddle. Loading hopper provide with filter to extraction of the liquid. Internal transmission parts are made in stainless steel and antiwear plastic support bearings.
Available in the following models: smalted iron (olnly for BETA 60 version); completely in stainless steel. On all models the basket and the centrifugal pump are made in stainless steel. The machine is completely opened centrally, allowing the carrying out of the operations of maintenance and cleaning in a simple way. On demand the machine could be supplied without centrifuge pump, with a fitting connection for an external pump.
Features BETA 60:
- Capacity 6000 kg/h
- 3 HP electric motor with starting capacitor
- Centrifugal pump in stainless steel
- Basket in stainless steel, professional type anti-laceration (optional)
- Destemming shaft with rubber tips

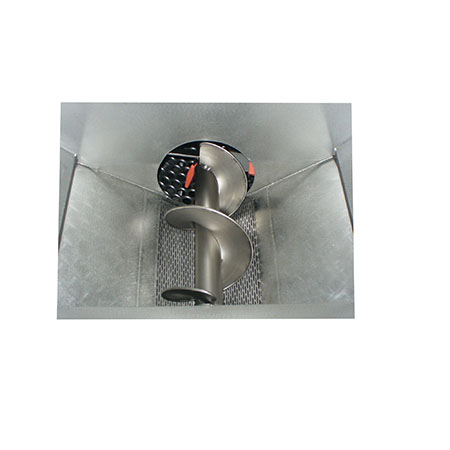

- Loading screw in rubber profile (optional)
- N°4 wheels with brakes
- Safety guards in stainless steel or smalted iron
Features BETA 90:
- Capacity 10000 kg/h
- 4 HP electric motor threephase
- Centrifugal pump in stainless steel
- Basket in stainless steel, professional type anti-laceration
- Destemming shaft with rubber tips
- Loading screw in rubber profile (optional)
- N°4 wheels with brakes
- Safety guards in stainless steel or smalted iron
Features BETA 120:
- Capacity 13000 kg/h
- 5,5 HP electric motor threephase
- Centrifugal pump in stainless steel
- Basket in stainless steel, professional type anti-laceration
- Destemming shaft with rubber tips
- Loading screw in rubber profile (optional)
- N°4 wheels with brakes
- Safety guards in stainless steel or smalted iron
| Model | Engine (Kw) | Hourly production | Speed | Pump | Pump heads | Ø Basket | Dimension | Weight |
| BETA 60 | 3 (2,2) | 5000-6000 Kg / h | 500 RPM | 60 Ø | 18 Orizz. – 5 Vert. | 300 mm | 1650x1050x1100 mm | 160 Kg |
| BETA 90 | 4 (3) | 8000-10000 Kg / h | 500 RPM | 60 Ø | 20 Orizz. – 6 Vert. | 400 mm | 1950x1100x1100 mm | 200 Kg |
| BETA 120 | 5,5 (4) | 10000-12000 Kg / h | 500 RPM | 60 Ø | 20 Orizz. – 6 Vert. | 500 mm | 2000x1100x1180 mm | 230 Kg |
