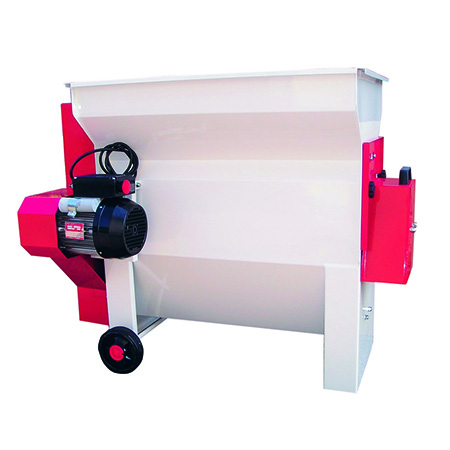

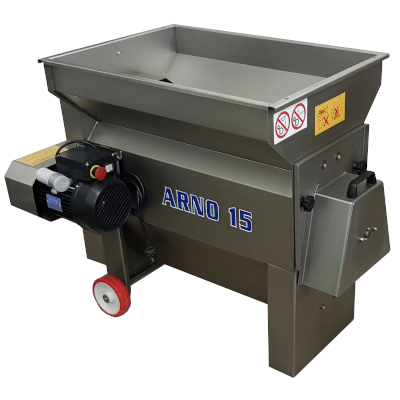

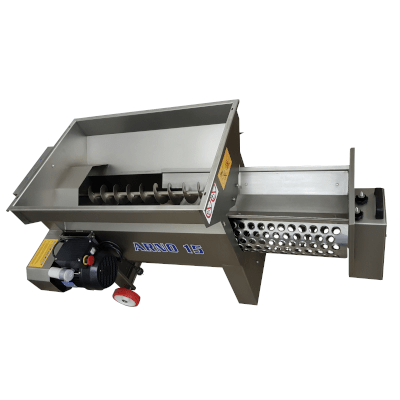

Destemmer motor equipped with a centrifugal pump for transfer the must inside the fermentation tank. Available in the following models: smalted iron; completely in stainless steel. On all models the basket and the centrifugal pump are made in stainless steel. The machine is completely opened in a few seconds and allows the carrying out of the operations of maintenance and cleaning in a simple and fast way.
Features ARNO 15:
- Capacity 2000 kg/h
- 2 HP electric motor with starting capacitor
- Centrifugal pump in stainless steel
- Basket in stainless steel
- Safety guards in stainless steel or smalted iron
Features ARNO 25:
- Capacity 3000 kg/h
- 2,5 HP electric motor with starting capacitor
- Centrifugal pump in stainless steel
- Basket in stainless steel
- Safety guards in stainless steel or smalted iron
Features ARNO 35:
- Capacity 3800 kg/h
- 2,5 HP electric motor with starting capacitor
- Centrifugal pump in stainless steel
- Basket in stainless steel
- Safety guards in stainless steel or smalted iron
| Model | Engine (Kw) | Hourly production | Speed | Pump | Pump heads | Dimension | Weight |
| ARNO 15 | 2 (1,5) | 2000 kg/h | 500 RPM | 60/50 Ø | 15 Orizz. – 5 Vert. | 1100x700x900 mm | 78 kg |
| ARNO 25 | 2,5 (1,8) | 3000 kg/h | 500 RPM | 60 Ø | 15 Orizz. – 5 Vert. | 1200x700x900 mm | 86 kg |
| ARNO 35 | 2,5 (1,8) | 3800 kg/h | 500 RPM | 60 Ø | 15 Orizz. – 5 Vert. | 1300x700x900 mm | 100 kg |
